Views: 0 Author: Site Editor Publish Time: 2026-09-21 Origin: Site
A 4G GPS tracker can provide frequent location updates or longer battery life, but maximizing both at the same time is difficult.
Every update uses power. The device has to obtain or estimate its position, connect to the mobile network and send data to a server. When positioning and reporting are linked, a tracker updating every two minutes may repeat this cycle about 30 times an hour; at a 10-minute interval, it does so about six times.
That does not mean a 5-minute setting will always use exactly twice as much battery as a 10-minute setting. GPS visibility, 4G signal strength, movement, calls and platform communication also affect the result.
For a commercial tracker project, the useful question is not “What is the shortest interval available?” It is “How current does the location need to be, and what charging routine will users actually maintain?”
Shorter update intervals normally increase power consumption because positioning and data transmission happen more often.
A published standby figure is meaningful only when its test settings are known.
Weak satellite visibility and poor 4G coverage can reduce battery life even when the reporting interval stays unchanged.
The right setting depends on the service workflow, not just the device specification.
The term can describe two related settings:
Positioning interval: how often the tracker obtains a new position through GPS or another available method.
Reporting interval: how often it uploads location data to the server or platform.
Some trackers link the two. Others may collect positions more frequently, upload them in batches or send an immediate update when an SOS or geofence event occurs.
This distinction matters during technical evaluation. A platform option labelled “10 minutes” may control GPS acquisition, server reporting or both. Before comparing battery results, make sure every supplier and test team is using the same definition.

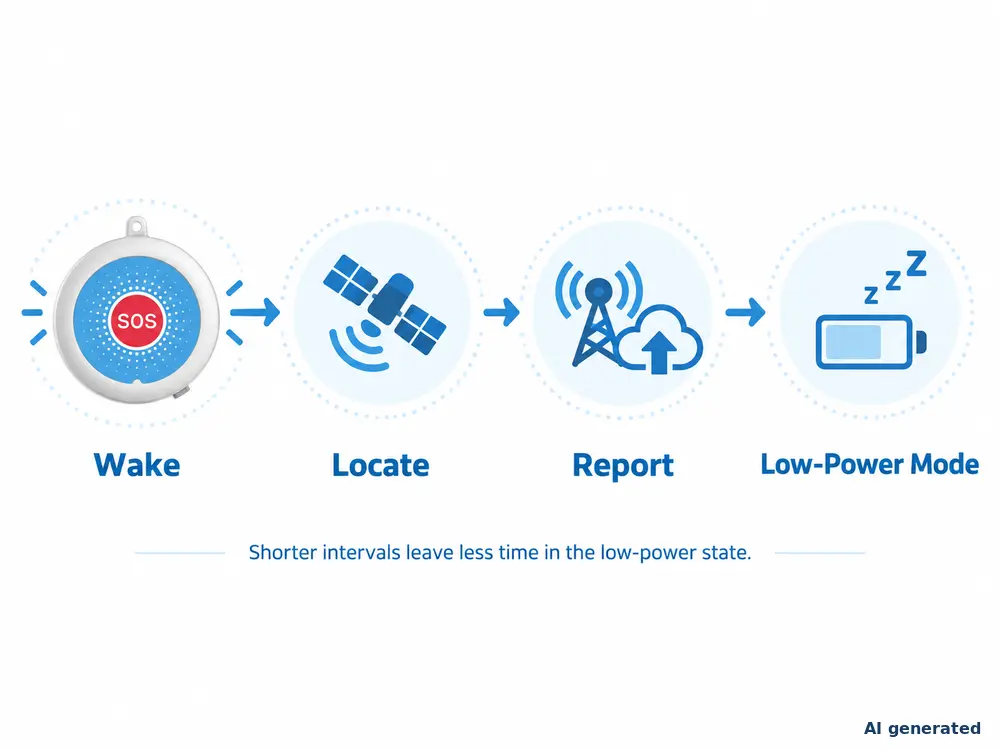

A battery-powered tracker spends much of its time in a lower-power state. When an update is due, it typically moves through four stages:
The device wakes the components needed for positioning.
It obtains a GPS fix or uses another available location source.
The 4G module sends the location and device status to the server.
The device returns to a lower-power state until the next task.
Shorter intervals leave less time for the fourth stage. However, the energy used in the first three stages is not fixed.
Outdoors with a clear view of the sky, the tracker may obtain a satellite fix quickly. Indoors or between tall buildings, positioning may take longer or rely more heavily on Wi-Fi or cellular information. A stable 4G connection can also send data more efficiently than a weak, intermittent one.
This is why battery life does not fall in a perfectly straight line as the interval becomes shorter. The update frequency sets the workload, while the environment determines how difficult each update is.

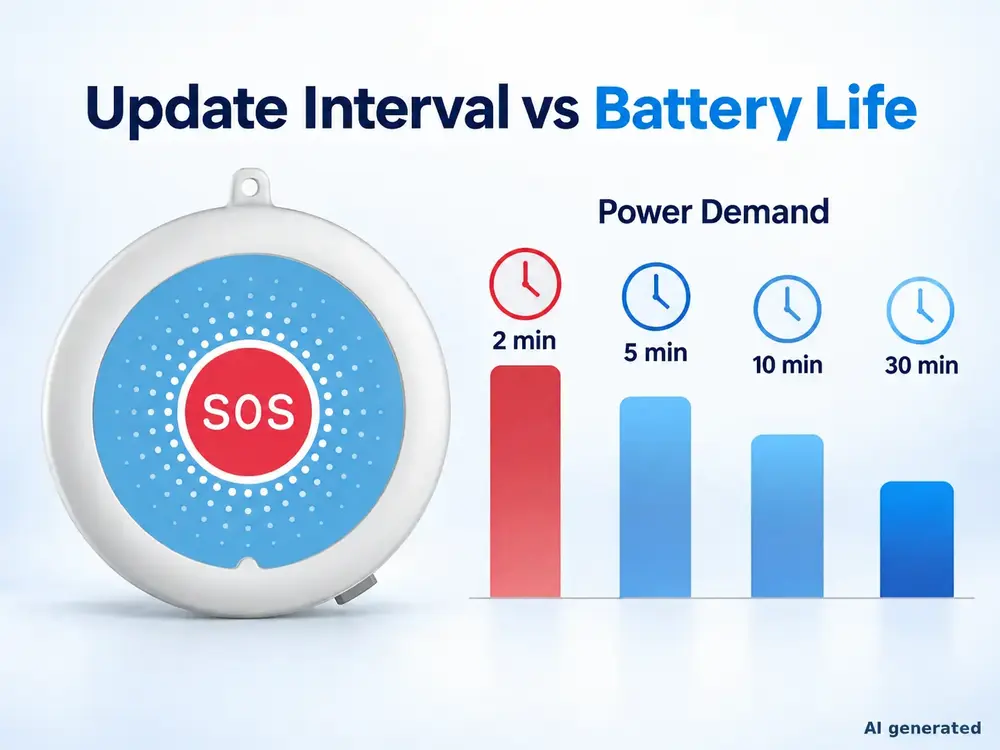

The table below is a planning guide rather than a battery-life promise.
Example Interval | Where It May Fit | Relative Power Demand | Main Trade-Off |
|---|---|---|---|
About 2 minutes | Short periods of close movement monitoring or an active incident | Very high | Detailed movement data, but frequent charging may be required |
About 5 minutes | Mobile users who need relatively current location information | High | Better location recency with a noticeable battery cost |
About 10 minutes | Routine personal-safety and care services | Moderate | A practical starting point for balancing visibility and battery life |
30 minutes or longer | Low-risk status checks or users who move infrequently | Lower | Longer gaps between routine locations |
Motion- or event-based | Projects that change reporting after movement, SOS or geofence events | Variable | Efficient when the trigger logic works reliably |

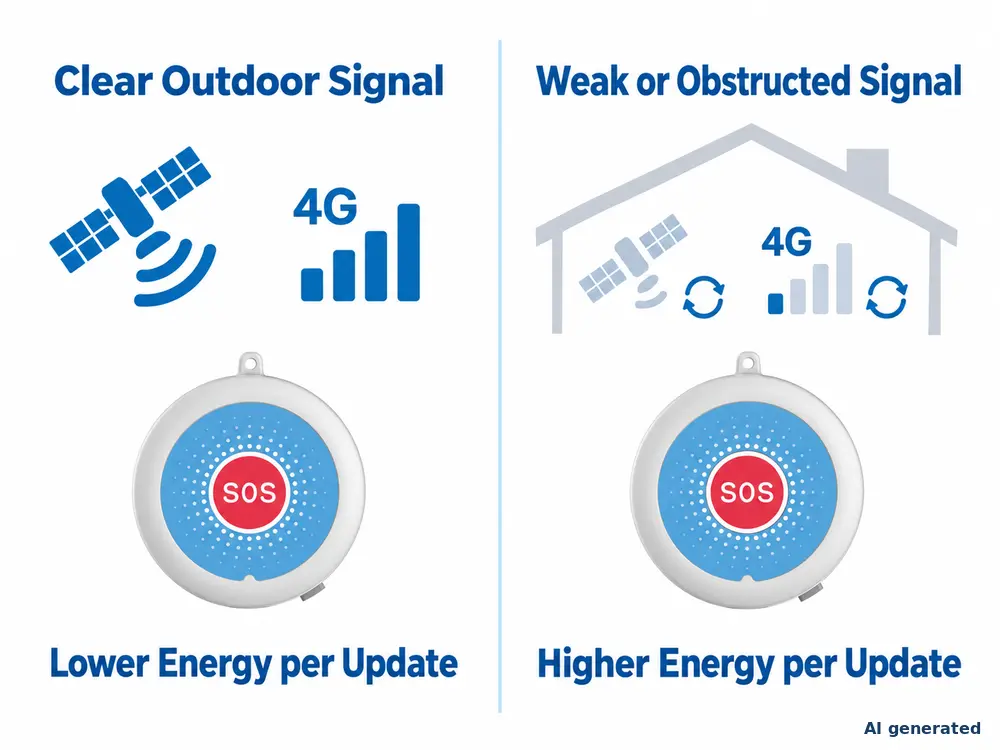

One interval can produce different results across two deployments. Ten-minute reporting in an outdoor area with stable coverage cannot be assumed to match ten-minute reporting inside a large concrete building.
GPS generally performs best outdoors. Indoors, in vehicles or in dense urban areas, the device may need more time to obtain a satellite fix or switch to another location source. Both the delay and the selected method can affect power use.
A weak or unstable signal may keep the cellular module active for longer while it registers, reconnects or retries an upload. An office test with strong coverage can therefore make battery performance look better than it will in the field.
Voice calls, SOS events, geofence alerts, heartbeats and remote commands all consume power outside the normal reporting schedule. A battery test with no calls or alerts is unlikely to represent a personal-safety service.
Some projects use different settings when the tracker is moving and stationary. This can reduce unnecessary updates, but the actual behaviour depends on the sensor logic, firmware and platform. It needs to be tested rather than assumed from a feature list.
Battery age, charging history and operating temperature can change usable capacity. New samples tested in a comfortable office do not show the complete deployment picture.
Start with the decision that the location data is supposed to support.
For a senior-care service, a reliable SOS process and sufficient battery reserve may matter more than a detailed route throughout the day. A moderate routine interval may be enough if the system can send faster updates after a defined event.
For a child-safety service, the project may need more detail during the school journey but fewer updates while the child is at home or in class. Route playback, arrival confirmation and geofence alerts should be considered separately rather than treated as one generic “real-time tracking” requirement.
In an institutional deployment, even a small reduction in operating time can create extra work across hundreds of devices. Charging, low-battery alerts, spare units and staff responsibility belong in the same discussion as the update interval.
More data is useful only when the service has a reason to collect it and someone or something is ready to act on it.
Standby time is normally measured under a defined low-activity configuration. Operating time reflects an active combination of positioning, network communication and user events.
The KAER HTK01 4G SOS GPS tracker provides a useful example. It has a 1000mAh battery and combines BeiDou, GPS, Wi-Fi and base-station positioning. It also supports geofencing and centralized management.
When SOS is triggered, the device reports the alarm and location to the platform and places an SOS call. For regular two-way calling, the user can long-press the multi-function button to call a family contact and short-press it to answer an incoming call.

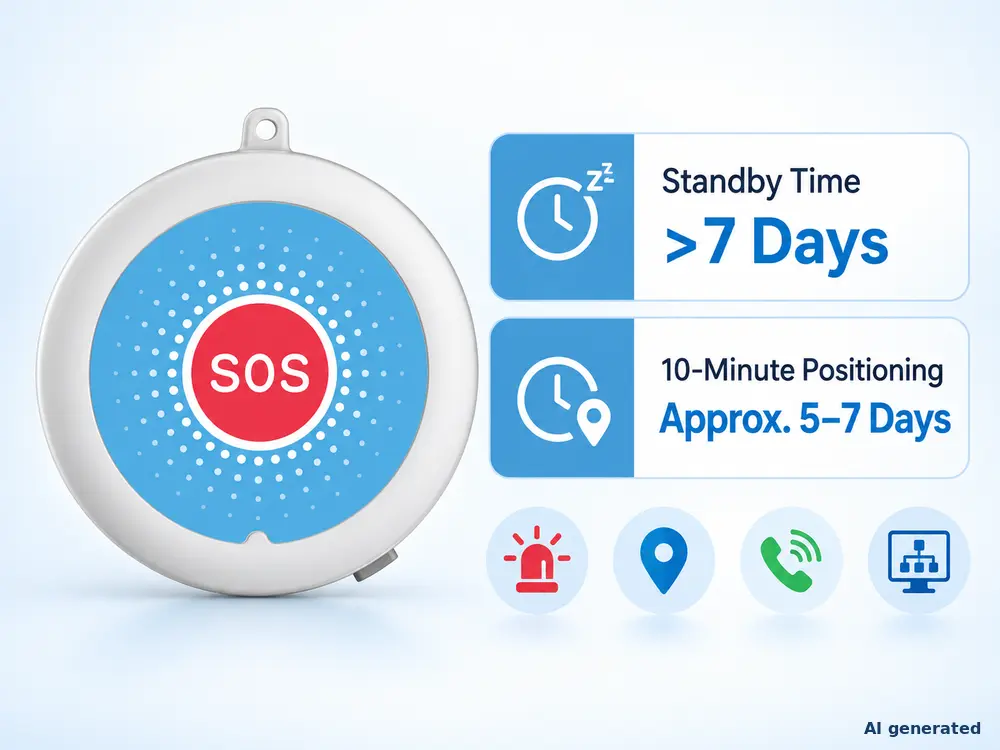

Its technical specification lists standby time of more than 7 days. With a 10-minute positioning interval, typical operating time is approximately 5–7 days. Signal conditions, calls, geofence settings and platform communication may change that result.
The figures describe different workloads: one reflects standby conditions, while the other includes regular positioning and data reporting. This is why a buyer should ask what settings sit behind any battery claim before comparing devices.
For wider product-selection considerations, see How to Choose a 4G GPS Locator for Senior Care in Europe.
A useful test recreates the service you plan to operate. It does not try to produce the longest possible number.
Record the positioning interval, reporting interval, location methods, heartbeat frequency, geofence settings and expected calls. If any of these change during the test, note when and why.
Test with the operator planned for deployment. LTE bands, APN settings, VoLTE configuration and local coverage can all influence performance.
Include the places where the tracker will actually be used: homes, corridors, elevators, streets, vehicles and weaker-coverage areas. Add a realistic number of calls, SOS tests and platform checks.
Run the same route and event pattern at two or three possible settings, such as 5, 10 and 30 minutes. Keep other variables as consistent as practical. Record battery level alongside successful updates, location recency, alert delivery and recovery after coverage loss.
One device and one discharge cycle are not enough. Repeat the test across several units and days, then define an acceptable operating range rather than relying on the single best result.
For a broader pilot process covering usability, calls, positioning and alert handling, see How to Test a Senior SOS Device Before Deployment.
It provides frequent periodic updates, but the platform still depends on positioning time, network transmission and server processing. “Real time” should always be translated into a measurable update and alert requirement.
Not necessarily. The device will update twice as often, but background consumption and the energy used by each GPS and 4G cycle also affect the final result.
There is no universal setting. The choice should reflect the user’s risk level, SOS process, coverage conditions and ability to charge the device. A moderate routine interval with faster event-based reporting may be more practical where the system supports it.
Standby figures usually reflect a low-activity test. Frequent positioning, poor signal, movement, calls, alerts and server communication all add to the active workload.
If you are evaluating HTK01 or a customized GPS tracker project, send KAER these five details:
Target country and mobile operator
Intended users and typical environment
Preferred update interval or battery-life goal
App, platform or API requirements
Sample quantity and estimated order volume
These details allow KAER to check whether the standard HTK01 configuration fits the target network, identify any items that need engineering review and prepare the sample around clear test conditions.
Send your project requirements to request an HTK01 sample and configuration review.
