| Model: | |
|---|---|

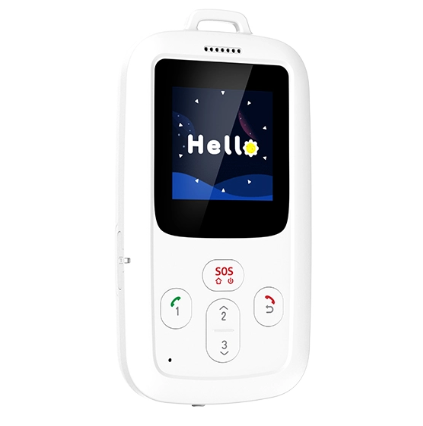

The HC01 4G LTE Smart Student ID Card is a GPS tracking badge designed for smart campus systems, student safety supervision, and intelligent attendance management in educational institutions. This card-style terminal integrates real-time GPS positioning, SOS emergency calling, 4G LTE communication, electronic fence alerts, and centralized platform management into a wearable form factor. Schools and education authorities can deploy these devices as part of a comprehensive student safety monitoring solution. Unlike conventional student identification badges, this device combines multi-satellite tracking technology with two-way voice communication while maintaining a slim card-style profile suitable for daily wear.
The student GPS ID card employs multi-technology fusion positioning combining GPS, BeiDou, GLONASS satellite systems with A-GPS assisted positioning, WiFi positioning, and cellular base station positioning. An AI optimization algorithm processes data from multiple sources to deliver location information across varied campus environments including indoor areas, building-dense zones, and open playgrounds.
The system supports two configurable priority modes. Power-saving mode prioritizes WiFi positioning followed by GPS/BeiDou and base station positioning, extending battery life for all-day operation. High-accuracy mode prioritizes GPS/BeiDou satellite positioning for maximum precision. Under optimal GPS conditions, positioning accuracy reaches within 10 meters. The system stores up to 7 days of movement history for route playback and review.
The electronic fence (geofencing) function allows school administrators to define designated safe activity zones. The platform generates instant alerts when students enter or leave predefined boundary areas, enabling rapid response to unauthorized departures or restricted area access. Multiple geofence zones can be configured simultaneously for different campus areas such as school grounds, approved commute routes, and prohibited locations.
The centralized management platform provides real-time location monitoring across all deployed devices. Administrators can review 7-day movement history playback to verify attendance patterns, commute routes, and after-school activity. This data supports safety investigations, attendance automation, and campus security audits for educational institutions.
Equipped with Nano SIM support and 4G LTE connectivity, the smart student card enables two-way voice communication between students and guardians or school staff. VoLTE HD calling technology delivers voice transmissions over the 4G network. Multiple LTE band versions are available to accommodate regional network requirements across Asia, Europe, and the Americas.
A contact whitelist system restricts incoming and outgoing calls to pre-approved numbers, blocking unauthorized communications. This feature prevents unsolicited contact while ensuring students can reach designated guardians and school personnel. The device supports automatic call retry for emergency connections, redialing preset contacts if the initial call goes unanswered.
A dedicated SOS button triggers immediate emergency alerts. When activated, the device automatically places calls to preset contact numbers sequentially until a connection is established. This one-button emergency function provides students with a direct method to request assistance during safety incidents or medical situations.
The device supports scheduled Do Not Disturb mode for classroom environments. During configured class hours, incoming calls and message notifications are disabled, and screen interaction is restricted to prevent academic disruption. Normal communication functionality automatically resumes after the scheduled time period concludes. Multiple DND schedules can be configured to match different class timetables across grade levels.
The device measures 101.8 × 53.4 × 10.6mm with a weight of approximately 60 grams. The slim card-style design allows students to wear the device comfortably via lanyard or card holder, comparable in size to a standard identification badge. The housing is constructed from ABS matte material.
The device carries an IP65 protection rating, providing resistance to dust ingress and water spray exposure encountered during daily school activities including outdoor classes and inclement weather conditions.
A 1.54-inch LCD screen with 240 × 240 pixel resolution provides single-point touch capability. Five physical buttons including SOS, call, and navigation controls enable operation without requiring touchscreen interaction. Charging is handled through a Type-C interface, compatible with standard USB charging cables.
The accompanying web-based management platform enables centralized administration for schools and education authorities deploying devices at scale. Administrators can uniformly configure family contact numbers, establish electronic fence boundaries, set Do Not Disturb schedules, and generate attendance reports across all devices in the deployment. The platform supports API integration with existing school management systems.
For commercial procurement and large-scale deployment, the system supports application customization, white-label branding, private server deployment, LTE band customization, and OEM/ODM manufacturing options. These capabilities accommodate smart campus solution providers, education technology integrators, telecom operators, and government student safety programs.
Items | Parameters | |
|---|---|---|
LCD | Size | 1.54 inches, 240*240 resolution, single-point touch. |
Communication | Bands | 4G:B1/3/7/38/40/41/ &5/8/20/28（3 in 4); 3G:B1/B8; 2G:B3/B8 4G:B2/4/5/7/12/17/41/66/71;3G:B2/B5/B8; 2G:B2/B5 4G:B2/3/4/5/7/8/28AB;3G:B2/B5/B8; 2G:B2/B5 |
SIM | Nano Sim | |
Positioning | Method | Beidou/GPS/A-GPS/Basestation/WiFi/GLONASS Targeting priority Power-saving type: WiFi>GPS/Beidou>base station Accurate type: GPS/Beidou>WiFi>base station |
Buttons | Quantity | 5 |
Power | Charging port | Type-C |
Battery | Built-in battery | |
Power adapter（optional） | DC 5V/1A, AC 110-240V | |
Structure | Housing material | ABS dull polish |
Color | White | |
Product size | 101.8x53.4x10.6mm | |
Weight | About 60g | |
Waterproof | IP65 | |
FAQ About Student GPS Tracker Card
Under optimal GPS signal conditions, positioning accuracy reaches within 10 meters. The device uses multi-mode positioning combining GPS, BeiDou, GLONASS, WiFi, and cellular base station technologies to maintain location availability across different campus environments.
Yes. Application customization, user interface branding, and private server deployment options are available for institutional deployments. The platform supports API integration with existing school management systems.
Multiple LTE band versions are manufactured to accommodate different regional network requirements, including configurations for Asian, European, and American markets.
The device carries an IP65 protection rating, providing dust protection and resistance to water spray exposure encountered during daily school activities.
Yes. Logo customization, firmware modification, and LTE band configuration can be arranged for volume orders. White-label and private labeling options are supported for solution providers.
Scheduled Do Not Disturb mode disables incoming calls and notifications during configured class hours. Normal communication automatically resumes after the scheduled time period. Multiple schedules can be configured for different grade levels.
