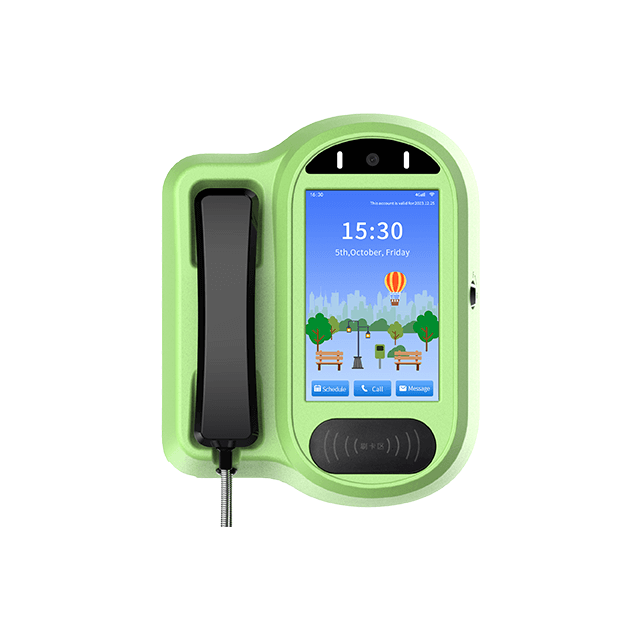

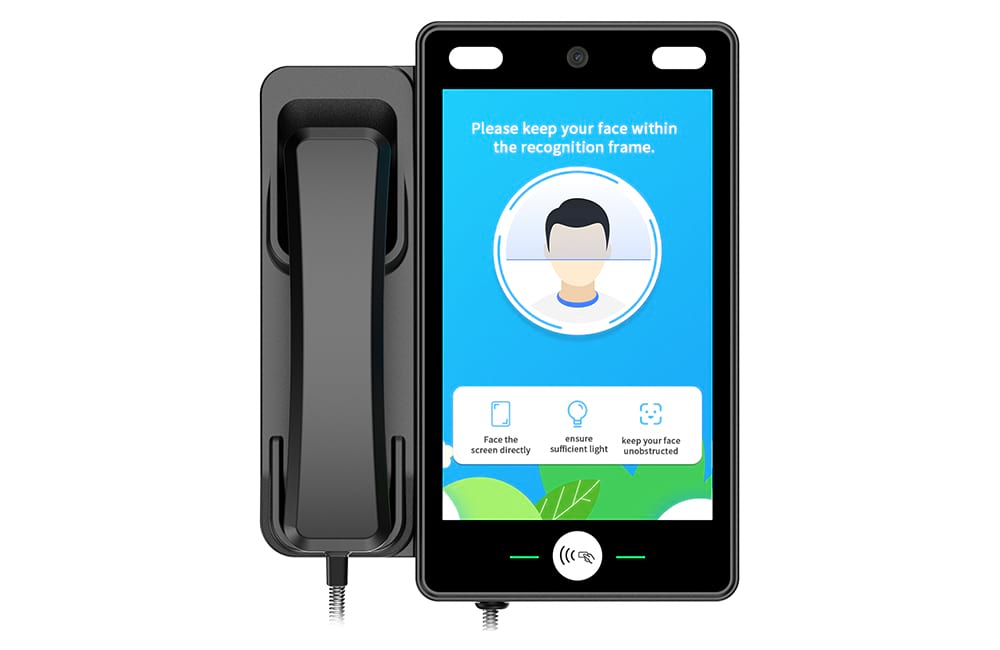

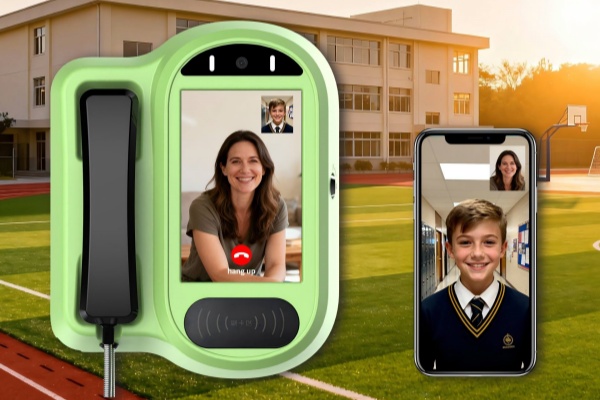

The HS06 VoIP Supported Payphone is a versatile communication solution tailored to campus and correctional facility needs. It combines 4G connectivity with VoIP compatibility, enabling cost-effective HD calls (voice/video) via both cellular networks and internet (SIP protocol). With three authentication methods (face recognition, card swipe, card insert) and a compact design (326*263*107mm, ≈1.9kg), it fits in tight spaces like school hallways or prison visiting areas. Key advantages include customizable emergency hotlines, call cost tracking, and campus attendance integration—making it a all-in-one tool for safety and management.
• VoIP Compatibility: Supports SIP-based audio/video calls and third-party VoIP apps (e.g., Zoom for schools), reducing call costs compared to traditional cellular plans.
• 4G Backup: Automatically switches to 4G if the internet fails, ensuring uninterrupted communication (critical for emergency calls).

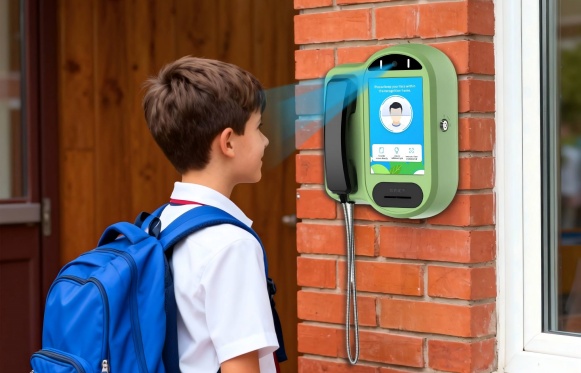

• Multi-Method Access: Face recognition (fast for high traffic), card swipe/insert (for younger students or prisons), and compatibility with Kaer’s thin/thick RFID cards—no need to replace existing campus ID systems.
• Secure Access Control: Administrators can restrict authentication methods per location (e.g., face recognition only in prisons, card swipe for primary schools).
• Call Monitoring: The platform tracks call duration, costs, and contact history—helping schools control student call expenses and prisons monitor inmate communications.
• Emergency Hotline Customization: Remote setup of dedicated hotlines (e.g., school nurse, prison security) on the home screen, with editable names/numbers via the platform.
• Primary & Secondary Schools: Used for student-parent calls (VoIP reduces costs) and attendance tracking (authentications log student presence).
• Prisons: Face recognition eliminates card-related contraband risks; VoIP allows secure, monitored calls between inmates and families.
A1: Connect the payphone to the internet (via RJ45 port), then configure SIP settings via the management platform (enter server address, username, password). We provide technical support for platform integration.
A2: For achieving 4G connectivity, this device necessitates 1 standard SIM card with dimensions of 25mm by 15mm. To ensure the integrity and security of the SIM card setup, the SIM slot has been designed in a way that it is locked. This locking mechanism is in place to prevent any unauthorized tampering. Only administrators have the key access, which allows them to open the SIM slot when necessary for tasks such as SIM card replacement or maintenance.
A3: Indeed, the 32G Micro SD card is capable of supporting call recordings, which are particularly useful for prison monitoring purposes. Additionally, it can store attendance data. This functionality allows for seamless management and retrieval of important information.
Item | Parameters | |
System | Frequency Bands | GSM:B2/3/5/8 WCDMA:B1/2/5/8 TDD-LTE:B34/38/39/40/41 FDD-LTE:B1/2/3/4/5/7/8/12/20(Support customization) |
Screen | Dimension | 8” |
Resolution | 800*1280 | |
TP | 5-point touch capacitive screen | |
Interface | SIM Card | 1*standard SIM card slot(25mm*15mm) |
Network Port | 1*RJ45,10/100M adaptive network port | |
TF Card | 1*Micro SD card slot, up to 32G | |
Power Supply | Adapter | Support customization of different countries |
Output | DC 12V/2A±10% | |
Device | Dimension | 326*263*107mm |
Weight | About 1.9kg | |
Color | Front shell is green, back shell is black | |
Waterproof | IP55 | |
Authentication | Face recognition, card insertion, card swiping (optional) | |
Working Temperature | 0℃~+50℃ | |
Working Humidity | 10%~95%(No condensation) | |
Working Pressure | 86kPa~106kPa | |
Storage Temperature | -10℃~+60℃ | |
