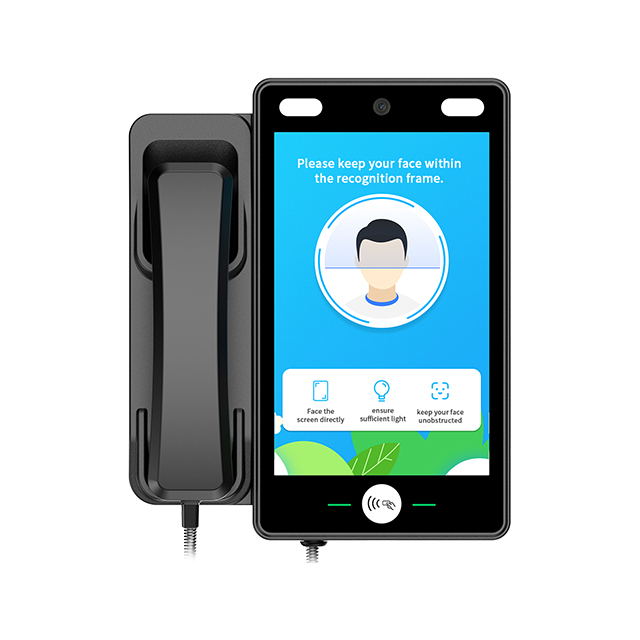

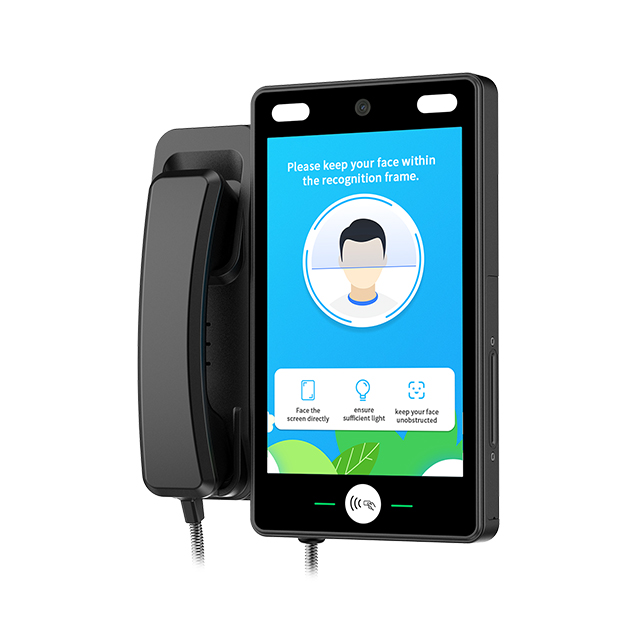

Metal Video Payphone with Large Screen
The payphone is equipped with a high-performance processor and designed for nationwide deployment in primary and secondary schools.
The payphone supports SIP/video calls with strong notification alerts, SIP calling functionality, and family messaging features.
The payphone provides 4G full-network access for VoLTE video calls, while also supporting voice/video calls through IoT cards and wired network connections.
To accommodate different school scenarios,the payphone offers both teaching attendance and dormitory attendance modes, facilitating efficient student management for educational institutions.
The payphone can be widely used in primary and secondary school campuses,and prison.
◆ Support 4G HD voice calls and VOLTE video calls；other app voice calls or video calls;SIP audio and video calls. ◆ Support strong reminders for incoming calls and messages, ringing and vibration. ◆ Support calling emergency helplines from the homepage, and the helpline name and number can be remotely set by the platform.
Authentication Method
◆ Supports three authentication methods: card swiping, card insertion, and face recognition. ◆ Compatible with Kaer's thin and thick cards.
Management Platform
Works with the phone management platform to handle contact updates, track call costs, set time limits, monitor device status, and adjust settings.
Application
Prison
The payphone is suitable for use in prison settings. It allows inmates to make calls directly by facial recognition, eliminating the need for swiping or inserting cards, which facilitates prison management.
The payphone is suitable for use in schools. It can be installed in teaching areas or dormitory corridors, allowing students to make calls via facial recognition or card swiping. Additionally, it can also function as an attendance tracking tool.
What call methods does this payphone support, and what are its network configurations?
This payphone supports 4G HD voice calls and VoLTE video calls, and is also compatible with SIP audio and video calls and third-party app audio and video calls. In terms of network coverage, it supports 4G full network compatibility (TDD-LTE/FDD-LTE), supports IoT card voice/video calls, and can also connect via wired network. The 4G frequency band can be customized to meet the network needs of different regions.
What authentication methods does this payphone offer, and what usage scenarios is it suitable for?
This payphone supports three authentication methods: card swiping, card insertion, and facial recognition. It is compatible with Kaer thin and thick IC cards, and the card slot supports standard large cards. It also has a NANO SIM card slot. In campus scenarios, card swiping/facial recognition can be used for calls and attendance tracking. In special scenarios such as prisons, facial recognition can be used directly for calls, eliminating the need for card insertion or swiping, improving management convenience and security.
What functions and attendance modes does this Payphone offer in a campus setting?
This Payphone is designed for nationwide deployment in primary and secondary schools. Besides its core calling function, it can also be used as a smart attendance device, providing attendance modes for teaching areas and dormitories to meet the management needs of different areas on campus. It also supports one-click dialing of emergency hotlines from the homepage; the hotline name and number can be remotely set by the management platform, balancing campus security and daily management.
Can this Payphone be integrated with a management platform, and what management functions does the platform offer?
This Payphone can seamlessly integrate with a dedicated telephone management platform. The platform enables remote contact updates, call cost statistics, call duration limits, real-time device status monitoring, and remote parameter adjustments. It also allows for unified setting of emergency hotlines and attendance modes, enabling centralized management of batch devices and significantly reducing maintenance and management costs in scenarios such as campuses and prisons.
Besides campuses and prisons, what other core application scenarios does this Payphone have, and what are its core advantages?
With its core advantages of a durable metal body, multiple authentication methods, high-definition video calls, and centralized platform management, this payphone is also suitable for judicial supervision scenarios such as detention centers and correctional facilities, as well as public scenarios with concentrated personnel such as industrial parks and large factories. It not only meets the compliant communication needs of personnel, but also enables efficient management by managers, balancing communication convenience with management standardization.
Control Unit
OS
Android 10.0（64bit）
RAM
2GB
ROM
32GB
Communication Parameters
4G working frequency band
TDD-LTE:B34/B39/B40/B41
FDD-LTE:B1/B3/B5/B8(Support customization)
WiFi parameters
2.4G/5G dual frequency band
Antenna
Built-in type
Camera
Pixel
CMOS 1300M
Viewing angle
125°
Display touch screen
Size
10.1 inch
Resolution
800*1280
Touch Screen
5 points captive touch screen
Back light
Provide color display backlight adjustment function
Card swiping
RFID
Support IC card
Card inserting
External SIM card
Supports standard large cards, compatible with thick and thin cards，size：54mm*86mm
External interface
SIM card
NANO SIM card（12mm*9mm）
Network port
1*RJ45，Adaptive network port
Power supply
Power adapter
Input AC 100～240V，output DC 12V/1A
Machine parameters
Product dimension
295*244*71mm
Product weight
About 2.2kg
Shell color
Black or silver
Working environment
Working humidity
10％ ~95％(no condensation)
Air pressure
86kPa～106kPa
Working temperature
-20℃～+55℃
Storage temperature
-30℃～+70℃
Core Application Scenarios of the Payphone HS07
1.Campus Applications
Student-Parent Communication: Students can make high-definition video or voice calls after verification via card swiping or facial recognition, solving the management challenge of students bringing mobile phones to school.
Intelligent Attendance Management: The device supports two attendance modes: teaching area and dormitory area. It can be used to record students' arrival, departure, and return to their dormitories, achieving automated management.
Campus Security Management: Supports one-click dialing of emergency help hotlines. The hotline number can be uniformly set by the management platform, facilitating students' quick assistance in emergencies.
2.Prisons and Judicial Supervision Facilities
Compliant Communication for Detainees: In a strictly controlled environment, detainees are allowed to conduct monitored voice or video calls with family members or lawyers after verification via facial recognition. Card verification can be disabled in this scenario to improve security.
Improved Management Efficiency: Administrators can centrally manage communication permissions, duration, and contacts through the backend, and record and monitor calls, balancing detainees' communication rights with management security.
Extended Applications: Also applicable to judicial scenarios with similar management needs, such as detention centers, drug rehabilitation centers, and correctional facilities.
Industrial parks and large factories: Providing employees living in the factory with convenient and controllable communication tools to stay in touch with their families, while allowing enterprises to manage and control costs through a unified platform.
Special needs public areas: Such as hospitals and large dormitory areas that require enhanced management of public communication services.
