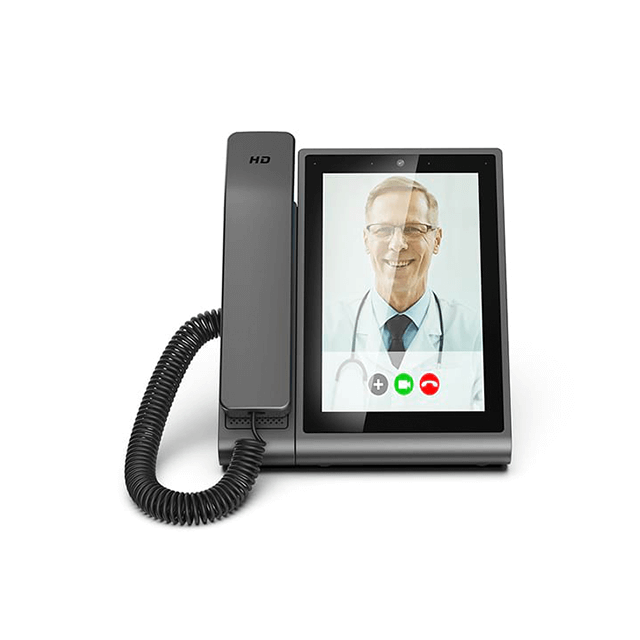

8 Inch Android Desk Phone with LTE Overview
The HA06 8-inch Android desk phone is a desktop communication terminal that integrates a touch display, camera, microphone, speaker, and handset into a single device. Designed for commercial procurement across multiple verticals, this LTE-enabled desktop phone supports VoLTE voice and video calling alongside SIP protocol compatibility. The device offers selectable regional frequency band configurations, including North American, European, and Japanese variants, enabling deployment across different geographic markets. Organizations in healthcare, senior care, enterprise offices, and hospitality sectors can deploy this terminal as a standardized communication solution.
VoLTE Calling and SIP Communication Features
4G LTE and VoLTE Call Capabilities

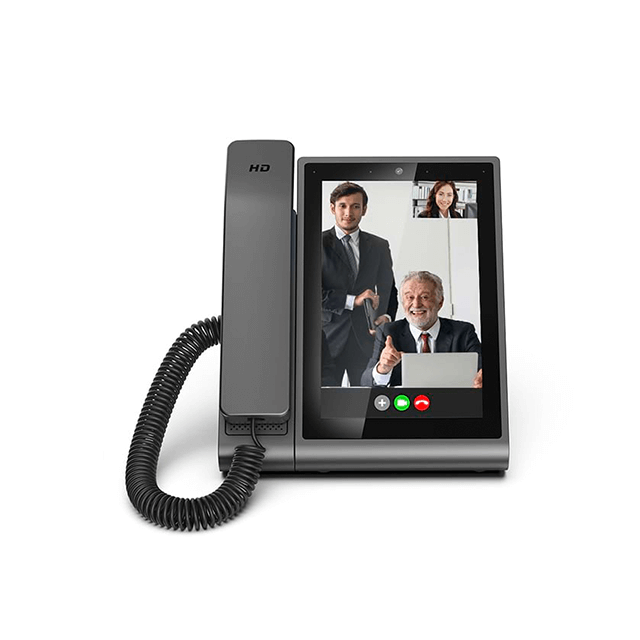

The device supports 4G cellular calling with VoLTE (Voice over LTE) technology for audio and video transmissions. VoLTE delivers voice calls over the 4G data network, supporting video calling functionality between compatible devices. The terminal also accommodates multi-party video conferencing sessions, allowing multiple participants to join a single video call for collaborative discussions.
SIP Protocol Compatibility
SIP (Session Initiation Protocol) calling is natively supported, allowing the desk phone to integrate with existing IP telephony infrastructure and PBX systems. This dual-mode capability means the device can operate on both cellular LTE networks and IP-based voice systems, providing communication redundancy for business operations.
Item | Describe |
|---|
Working frequency band | North American frequency band | LTE FDD：B2/4/5/7/12/13/14/17/25/26/66/71 LTE TDD：B41/48 WCDMA：B2/4/5 |
European frequency band (optional) | LTE FDD：B1/3/5/7/8/20/28 LTE TDD：B38/40/41 WCDMA：B1/2/5/8 GSM：B2/3/5/8 |
Japanese frequency band (optional) | LTE FDD：B1/3/8/18/19/21/26/28 LTE TDD：B41 WCDMA：B1/6/8/9/19 |
Wi-Fi | Support 802.11a/b/g/n/ac, 2.4G/5G dual band |
ZigBee(optional) | Support ZigBee3.0 |
Bluetooth | Bluetooth 5.0 |
Display touch screen | Size | 8 inch |
Resolution | 800*1280 |
Touchscreen | Capacitive screen, multi-touch |
Backlight | Provide color display backlight adjustment function |
External interface | SIM card slot | 1 Nano SIM card slot |
Headphone jack | Supports 3.5mm headset interface |
USB | TYPE-C, supports software upgrade and debugging |
TF card slot | Supports up to 256G |
Buttons | Volume button | Volume + and - keys to adjust the volume |
Power button | Power button to control the power on and off |
Power supply | Power adapter | DC 12V/1A |
Battery(optional)） | Type | Li-Polymer lithium polymer battery |
Capacity | 3.7V 2500mAh |
Device parameters | Dimensions | 235*195*65mm |
Weight | About 0.9kg |
Color | Black |
Network and Connectivity Specifications
Wired and Wireless Internet Access
The device includes an Ethernet port for WAN connectivity and supports local internet access via Wi-Fi. The LAN port can share wired network connectivity with connected PCs, reducing the need for additional network ports in office setups. Wi-Fi specifications comply with the 802.11a/b/g/n/ac standard, operating on both 2.4GHz and 5GHz dual bands.
Bluetooth and Optional ZigBee
Bluetooth 5.0 is built in for peripheral device connectivity. An optional ZigBee 3.0 module is available for smart building and IoT integration scenarios, allowing the desk phone to serve as a control hub for connected devices in hotel or office environments.
Hardware and Display Configuration

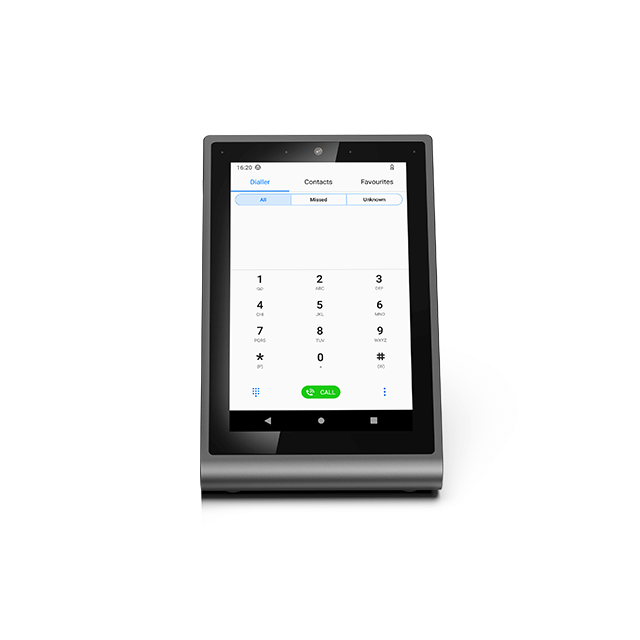

8-Inch Touchscreen Display
The device features an 8-inch capacitive multi-touch screen with 800 × 1280 pixel resolution. The display supports color backlight adjustment, enabling brightness modification according to ambient lighting conditions. Physical volume and power buttons complement the touch interface, providing alternative control methods for users.
External Interface Array
The terminal is equipped with one Nano SIM card slot, a 3.5mm headphone jack, a Type-C interface, and a TF card slot supporting up to 256GB of storage expansion. The Type-C port facilitates software upgrades and debugging operations, while the headphone jack enables private audio conversations. The TF card slot allows local storage expansion for call logs, contact directories, and application data.
Deployment Scenarios for Commercial Use
Enterprise Office Environments
In office settings, the Android desk phone functions as a unified communication station supporting audio calls, video calls, and multi-party conferencing. The Android operating system allows installation of productivity and collaboration applications, consolidating multiple communication tools into a single desktop device.
Hospitality Deployment
For hotels, the device serves both front desk and in-room use cases. Guests can place calls to the front desk via IP or VoIP, and access hotel service directories directly through the touchscreen interface. The customizable Android platform enables hotels to deploy branded service applications on each terminal.
Healthcare and Senior Care Facilities
In medical and senior care environments, the large touchscreen and simplified interface support video consultation and patient monitoring applications. The LTE connectivity ensures communication remains available even during wired network interruptions.
Customization and SDK Integration
The device runs on the Android operating system with an open hardware platform and dedicated SDK. Full customization support enables system integrators and commercial users to adapt the device to specific industry requirements. Third-party software integration, interface modification, and functional configuration adjustments can be implemented according to scenario-specific needs.
FAQ About 8 Inch LTE Desk Phone
What calling methods does this Android desktop phone support?
The device supports 4G cellular calls, VoLTE audio and video calls, and SIP protocol calls. It also supports multi-party video conferencing, accommodating both one-to-one communication and multi-person collaborative calls in enterprise office and hospitality service scenarios.
Which frequency bands does the device support for regional deployment?
The base configuration supports North American frequency bands. European and Japanese frequency band versions are available as optional configurations. All versions cover LTE FDD/TDD and WCDMA standards, adapting to network environments across different countries and regions.
What external interfaces are available for expansion?
The device includes one Nano SIM card slot, a 3.5mm headphone jack, a Type-C interface, and a TF card slot supporting up to 256GB. The Type-C port handles software upgrades and debugging, the TF slot provides storage expansion, and the headphone jack supports private calls.
Does the device support customized development for industry applications?
Built on the Android system with an open hardware platform and dedicated SDK, the device supports full-spectrum customized development. Third-party office and service software can be integrated, and functional configurations can be adjusted according to industry scenario requirements for enterprises, hotels, and healthcare facilities.
What are the screen specifications and display features?
Equipped with an 8-inch 800 × 1280 resolution capacitive multi-touch screen, the device supports color display backlight adjustment for brightness control based on ambient conditions. Physical volume and power buttons complement the touchscreen interface.
